Type B
For certain flammable products when not filled or discharged in an explosive gas or vapor atmosphere, we need Type-B bags. It can prevent propagating discharge. Type B bags have a thin coating which results in a breakdown voltage of less than 6 kV .

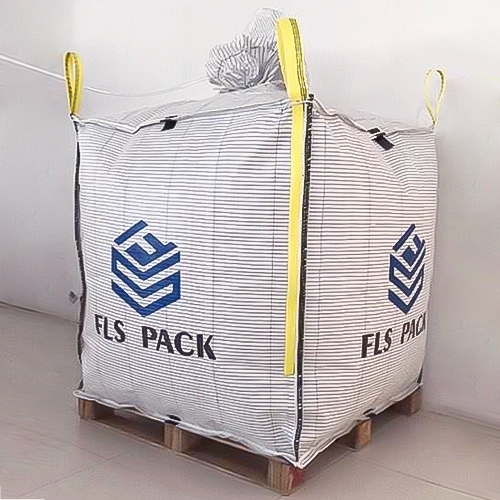

 Type C For certain flammable products and in the presence of flammable gases or vapors with ignition energies ≥ 0,14 mJ, we need Type-C bags. It is Grounded during filling and discharging to safely dissipate static electricity. Type C bags have an interconnected grid of conductive threads and grounding tabs. |

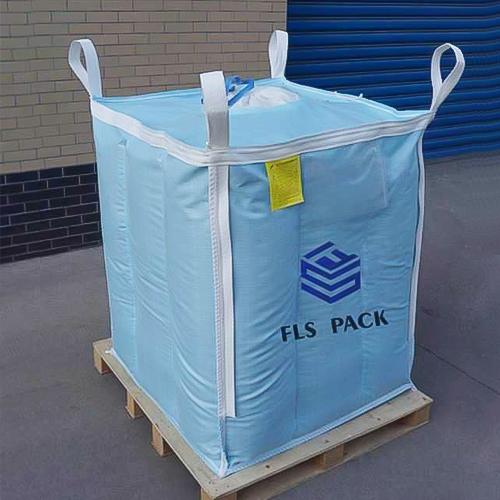

 Type D For certain flammable products and in the presence of flammable gases or vapors with ignition energies ≥ 0,14 mJ, we need Type-D bags. This Static charges are dissipated by the corona effect, and grounding of the FIBC is not necessary. Type D bags have antistatic fabric with permanent dissipative threads. |
Instruction To Use our Antistatic big bag
Bulk Product: | FIBC Type for Different Surroundings | ||
Non-flammable Atmosphere | Explosive Dust Atmosphere | Explosive Gas and Vapor Atmosphere | |
MIE > 1000 mJ | A, B, C, D | B, C, D | C, D |
1000 mJ > MIE > 3 mJ | B, C, D | B, C, D | C, D |
MIE < 3 mJ | C, D | C, D | C, D |
Type B
For certain flammable products when not filled or discharged in an explosive gas or vapor atmosphere, we need Type-B bags. It can prevent propagating discharge. Type B bags have a thin coating which results in a breakdown voltage of less than 6 kV .
Type C For certain flammable products and in the presence of flammable gases or vapors with ignition energies ≥ 0,14 mJ, we need Type-C bags. It is Grounded during filling and discharging to safely dissipate static electricity. Type C bags have an interconnected grid of conductive threads and grounding tabs. |
Type D For certain flammable products and in the presence of flammable gases or vapors with ignition energies ≥ 0,14 mJ, we need Type-D bags. This Static charges are dissipated by the corona effect, and grounding of the FIBC is not necessary. Type D bags have antistatic fabric with permanent dissipative threads. |
Instruction To Use our Antistatic big bag
Bulk Product: | FIBC Type for Different Surroundings | ||
Non-flammable Atmosphere | Explosive Dust Atmosphere | Explosive Gas and Vapor Atmosphere | |
MIE > 1000 mJ | A, B, C, D | B, C, D | C, D |
1000 mJ > MIE > 3 mJ | B, C, D | B, C, D | C, D |
MIE < 3 mJ | C, D | C, D | C, D |
